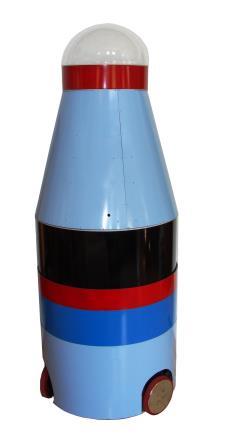

CYCOGS Medium Sized Robot

The CYCOGS medium sized round robot (MSR™) features some of our cyber-physical systems based on our patented and patent pending technology.
The robot base is the lower part of the robot, housing three Wheel Assembly Modules (Wheel Assembly Module) providing holonomic movement capabilities.  The base also provides room for three battery bays.
An upper chassis section contains electronics and computers.
For sensing, this robot uses two modular sensor rings (Sring™ in red) capable of rotary position placement, track, scan and rotation movements.
Two rotary positionable modular hybrid snake arms (HYSA™ / Snarm™) (Illustrated extended in an over and under configuration) provide manipulator capability.
Please note that the modular Sring and Snarm systems are capable of continuous direction independent rotations.
The robot is medium sized, yet it can still maneuver through a majority of doorways.  Applications can vary, the robot is designed to perform work or services.

Robot design specifications:

Chassis:                       Aluminum
Diameter:                     700mm  (27.5")
Height:                         1900mm  (75") (mid lift position)
Ground Clearance:     50mm    (2")     (mid lift position)
Estimated Weight:      300kg+   (660lbs+)
Battery Power:            3 packs,  48V each
Per Arm Max Reach:  2M          (6.6')
Per Arm Max Load:    100kg     (220lbs)
Wheel Diameter:         200mm   (8")
Dynamic Load Capacity per Wheel Assembly Module: 455kg (1000lbs)

CYCOGS Medium Sized Mobile Robotic System is not available at this time.
The basic chassis is available for purchase, consisting of only the aluminum chassis.

Advanced orders may be accepted,  please contact sales for more information.
